| Type | Parameter | Type | Parameter |
|---|---|---|---|
| Image Sensor Size | 2个 1/1.8 inch | Video Encoding | H. 265 |
| Image Sensor Type | CMOS | HDMI | 3个HDMI 2.0、1个HDMI1.4 |
| Scanning Method | line-by-line scanning | SDI | / |
| Frame Rate | 60fps | RJ45 | 1000M bit/s |
| Effective Pixels | 3840(H)x 2160(V) | USB | 5个USB 3.0 |
| Horizontal Resolution | >1700 line | Power Supply | DC12V 3A |
| Vertical Resolution | >1200 line | Power Consumption | 11.58W(12V 965mA) |
| Brightness Response Characteristics | Linear fitting coefficient R≥0.99 | Operating Temperature | 5℃~40℃ |
| Signal-To-Noise Ratio | 50dB | Operating Humidity | 30%~85% |
| Spatial Frequency Response | MTF50:34C/°，MTF30:38 C/ | Atmospheric Pressure | 700~1060hPa |
| Tolerance Of Static Images | >150 | Output Method | HDMI、RJ45、USB |
| Minimum Illuminance | 1LUX F1.2 | Size | motherboard:155*110mm |

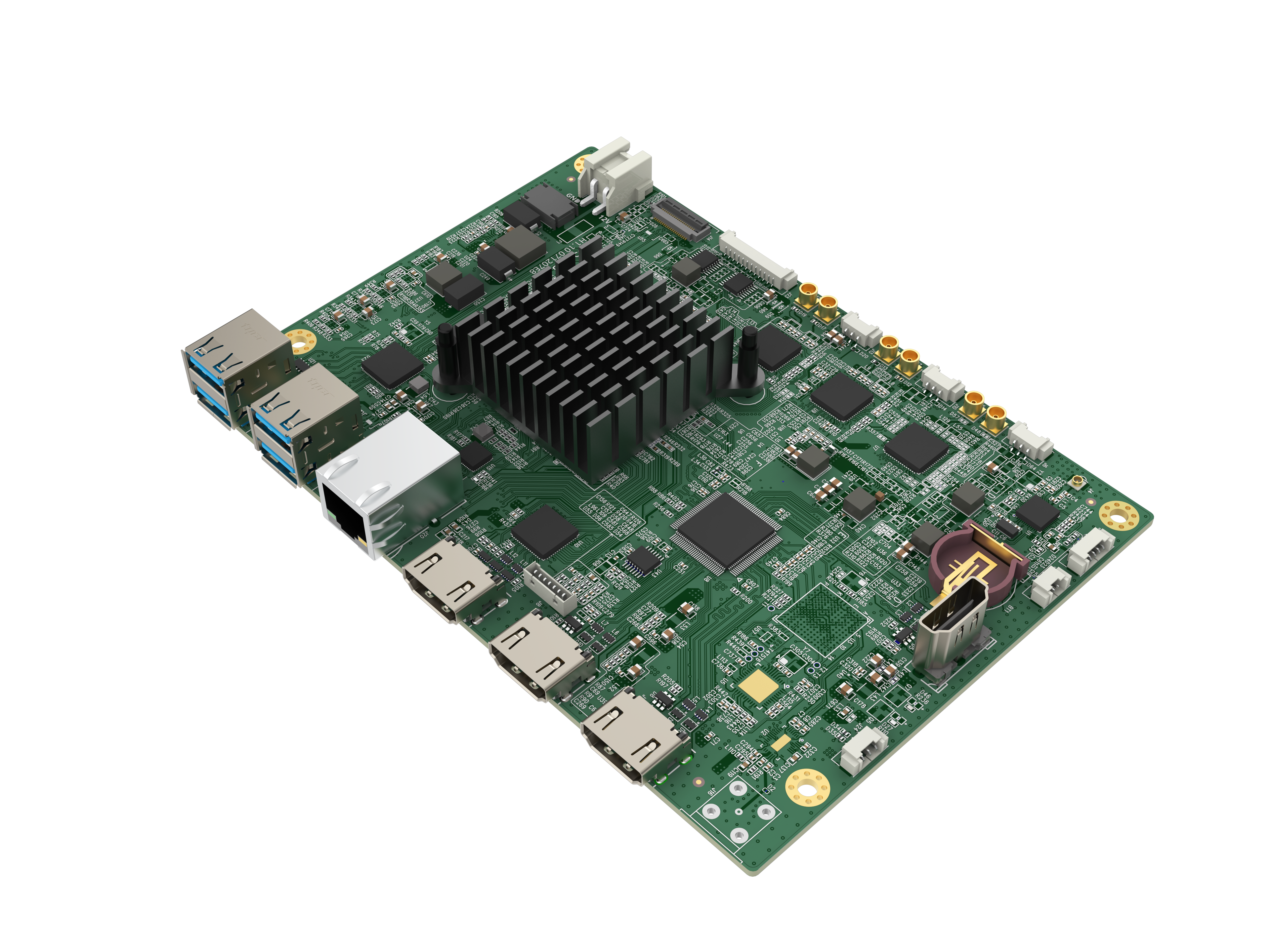

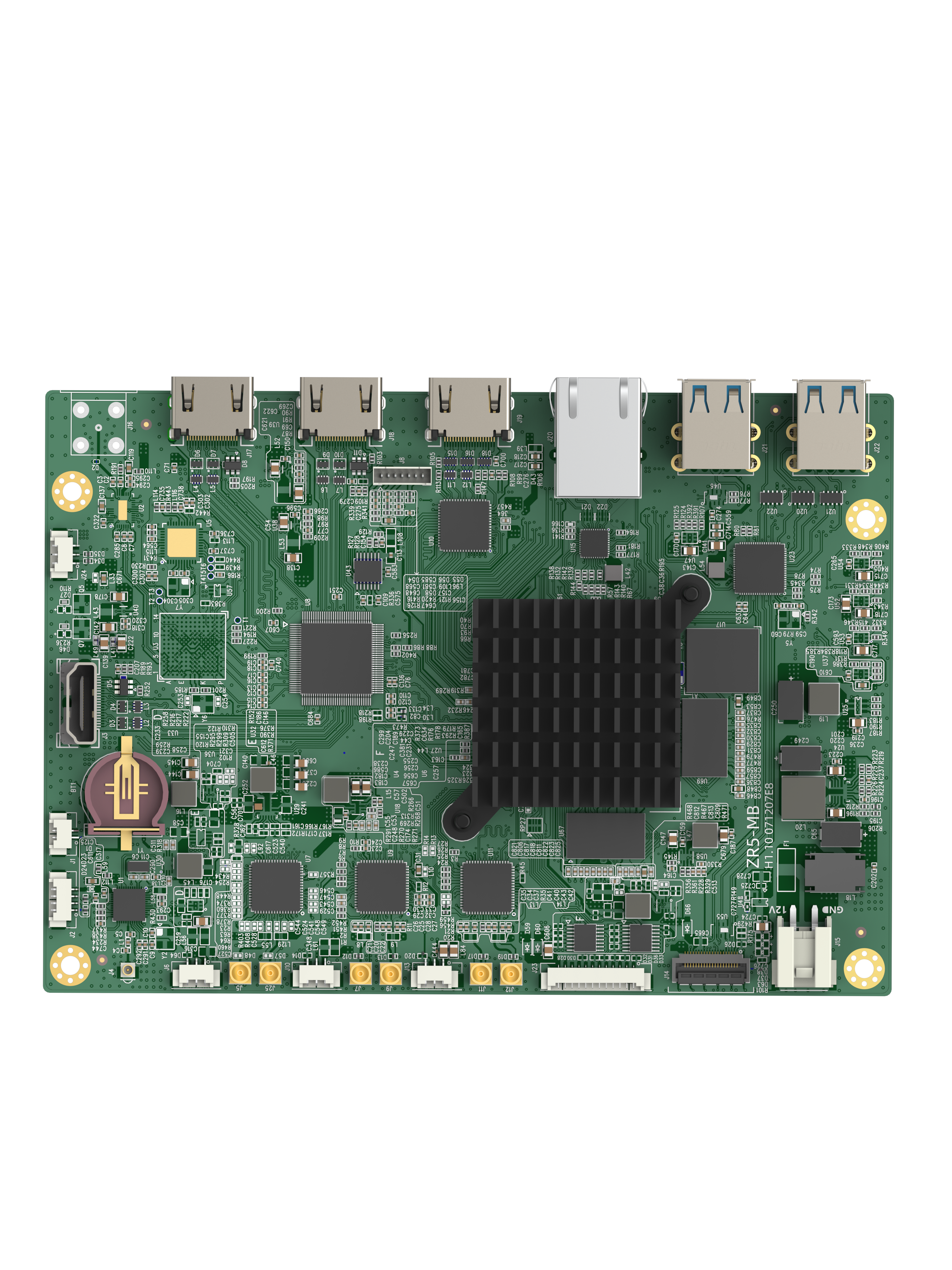

ZR5HB Motherboard
ZR5 series ultra high definition imaging system, supports 3-channel 4K 60FPS input, 4-channel HDMI output, supports 4K fluorescence+4K 3D applications
Product Details
Specification parameters
Characteristics
Explanation
1.2 Camera inputs: 2x4K30 or 1x4K60
2. HDMI 2.0 4K60 output, DVI/Lvds 1080P60 output
3.1000M Ethernet
4.4xUSB3.0 、2xCOMs
5. Size: 155 * 110mm
6. Can connect single/dual 4K ultra high definition dedicated cameras
7. Support stereo 4K ultra high definition dedicated cameras for 3D imaging
8. Supports 4K ultra high definition color fluorescence/multispectral video fusion
9. Provide IOS/Android/Windows application software and SDK
10. Ultra high definition resolution: 4K>1800TVL; 1080P >900TVL
11. Automatic/manual white balance, locked white balance, S<0.02
12. Accurate color reproduction with Δ C00<3
13. Intelligent noise reduction, HDR wide dynamic range (≥ 19)
14. Edge enhancement, target enhancement, recognition, and labeling
15. H. 265 encoded video recording and playback, 800W JPEG capture and preview
This product is a new generation of medical digital ultra high definition endoscopic camera system independently developed by our company, which can rival the image effects of top foreign brands' single-chip ultra high definition cameras.
The camera adopts unique CMDI transmission technology and low-power design, with heat generation less than half or even lower than SDI cameras.
The system supports basic functions such as USB high-definition video recording, storage, photography, backup, etc; It has unique features that allow customers to independently correct colors, save scenes, offset images, set logos, display time, and upgrade services.
This system has a network port that can be used for collaborative development, providing remote mobile and computer clients with preview endoscopic surgical videos for image pathology analysis, achieving true networking, informatization, and integration of surgical endoscopic systems.
